ACDC HYBRID SOLAR AIR CONDITIONER
Classification:
Solar air conditioner series
Email:
Product information
TECHNICAL SPECIFICATIONS
| Model | AC Power | DC Power | Cooling Capacity |
Heating Capacity |
Cooling Power Input |
Heating Power Input |
Indoor/ outdoor Net Weight |
Indoor Net Size |
Outdoor Net Size |
| KFR-26GW/BPSA | 220V 50/60HZ |
50-380V | 90000BTU | 9500BTU | 100-1200W | 120-1200W | 9.6/39 | 870x270x360 | 900x400x600 |
| KFR-35GW/BPSA | 12000BTU | 19000BTU | 110-1500W | 130-1510W | 9.6/40 | 870x270x360 | 900x400x600 | ||
| KFR-50GW/BPSA | 18000BTU | 19000BTU | 140-1800W | 200-1900W | 12.5/44 | 1035x305x380 | 900x400x600 | ||
| KFR-70GW/BPSA | 24000BTU | 25000BTU | 240-3030W | 260-3140W | 15.2/62 | 1120x310x405 | 1063x480x760 | ||
| KFR-90GW/BPSA | 30000BTU | 31000BTU | 280-3350W | 300-3450W | 15.2/62 | 1120x310x405 | 1063x480x760 | ||
| KFR-100GW/BPSA | 36000BTU | 37500BTU | 320-3510W | 350-3650W | 15.2/73 | 1120x310x405 | 1090x500x860 |
FEATURES
The Hybrid ACDC Solar Air Conditioner does not require any battery, and just need a few solar panels to deliver huge saving. During the sunshine day, when air conditioner is needed at the most, you can operate this unit up to 100% by solar panesl. When night comes, you continue to save > SEER 21 rating on this unit

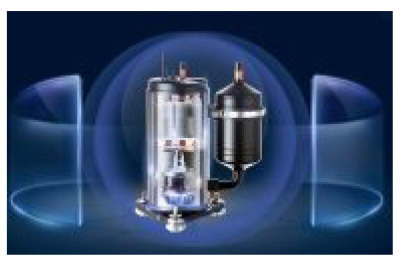

High efficiency brushless
inverter permanent-magnet
compressor
0.1Hz low frequency
running, low power
consumption
R410a environment
protection refrigerant
Indoor unit noise level
low to 26 dB
30s fast cooling/1 min
powerful heating
Built-in MPPT,maximum
utilizes the solar power
during the day
Super wide operating
temp.range:-10℃~52℃

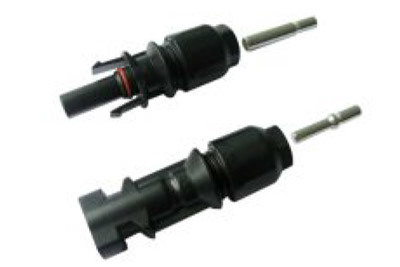

Solar panel connection on
outdoor unit: Easy installation
and maintenance, Plug & Run
SYSTEM DIAGRAM
The ACDC Hybrid Solar Air Conditioner is different as the regular DC inverter air conditioners. During the day,it runs directly on DC power from solar panels. With the intelligent Power Management technology, this system can directly utilize theDC power from the solar panels,no longer need an inverter, controller or battery.During the sunshine day, when the solar power generated is bigger than the air conditioner power consumption, the ACDC hybrid solar air conditioner can get most power from the solar panels, the efficiency high up to SEER36rating. The unit can be connected with up to 380v/10A solar DC power. This system is designed for hybrid operation by utilizing the solar providing all the power required during sunshine hours.This system primarily uses solar power, and mixes it with normal 220v~240v AC power if needed.
SYSTEM COMPONENT

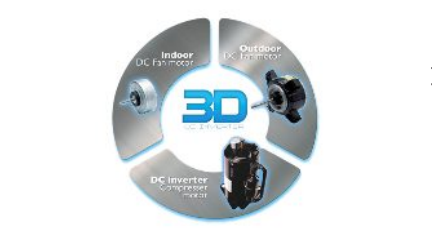

Indoor & Outdoor unit both adopting DC brushless fan motor and DC permanent-magnet rare earth compressor, greatly reduce the energy loss, ensured low noise.Moreover, the DC brushless fan motor can adjust the frequency and cool/heat power accordingly.
Outstanding Feature
Our ACDC Hybrid Solar Air Conditioner system is designed to use solar. When the grid voltage low to 165v, our system can still work well. Besides the compressor and control circuit, all the main components are DC powered, like high
efficient DC fan motor, compressor and electronic expansion valve. There are several sensors in the system detect the circuit, control the refrigerant flow volume through the electronic expansion valve, thus achieve perfect combination of intelligent refrigerant flow and inverter technology, raise or lower the air conditioner’s cooling/heating capacity according to the actual conditions. The inverter controller manage compressor running speed, refrigerant flow volume and fan speed etc., these all can be managed through the several sensors detect the circuit, and adjust automatically according to the actual conditions. When the room temp. is approached to the setting temp, the system will automatically lower its capacity and power consumption, so the inverter Variable Refrigerant Flow (VRF) technology itself can save 40%~50% compared to the regular air conditioner.
OTHER FEATURES
Wide voltage design

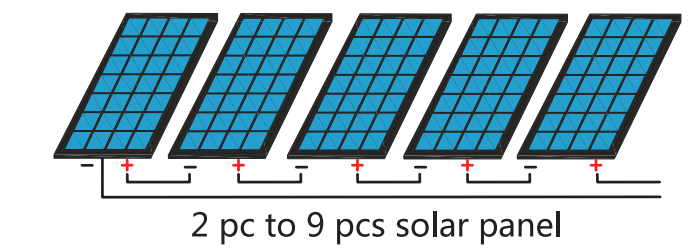

Series connect 2 ~9 pcs solar panels, achieve
50~380V DC.
OTHER FEATURES
We are the solar air conditioner solution provider, we not only sell the solar air conditioner but also provide professional solar solutions to our clients.Our target is to let the people all around the world enjoy the environment protection energy saving solar air conditioner.
EXPERIENCE
20 years in HVAC field and 8 years in Solar Air Conditioner
SERVICE
Provide not only the high-quality products but also the full solar solutions.
PROFESSIONAL
Leave the green energy saving solution to professional people please, we can provide you time & money-saving, and safety service.
