OFF GRID 100% SOLAR POWER AIR CONDITIONER
Classification:
Solar air conditioner series
Email:
Product information
TECHNICAL SPECIFICATIONS
| Model | DC Power | Cooling Capacity |
Heating Capacity |
Cooling Power Input |
Heating Power Input |
Indoor/ outdoor Net Weight |
Indoor Net Size |
Outdoor Net Size |
| KFR-26GW/DCBP | 42-60V | 90000BTU | 9500BTU | 100-850W | 120-880W | 9.6/39 | 870x270x360 | 900x400x600 |
| KFR-35GW/BDCBP | 12000BTU | 13000BTU | 110-1300W | 130-1350W | 9.6/42 | 870x270x360 | 900x400x600 | |
| KFR-50GW/DCBP | 18000BTU | 19000BTU | 140-1650W | 200-1710W | 12.5/44 | 1035x305x380 | 900x400x600 | |
| KFR-70GW/DCBP | 24000BTU | 25000BTU | 240-1980W | 260-2039W | 15.2/59 | 1120x310x405 | 1063x480x760 | |
| KFR-90GW/DCBP | 30000BTU | 31000BTU | 320-2300W | 350-2410W | 15.2/69 | 1120x310x405 | 1090x500x860 | |
| KFR-100GW/DCBP | 36000BTU | 37500BTU | 350-2600W | 390-2700W | 27.6/73 | 1340x380x450 | 1090x500x860 |
FEATURES
Run by Solar PV through the day and Battery through the night which is charged Free by the sun. Finally 24 hour cooling and heating that cost you absolutely NOTHING to RUN.

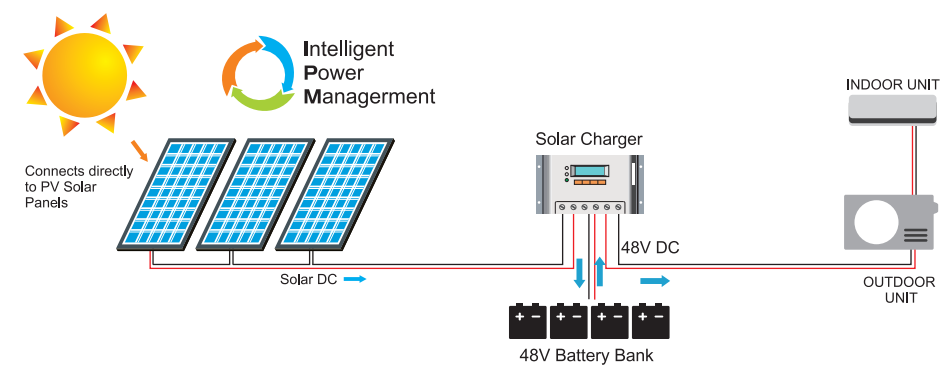

SYSTEM DIAGRAM
Depends on different working conditions, 4 ~6 pcs 300w solar panels can operate the system to work up to 10 hours per day. 6~8 pcs 300w panels up to 16 hours. 8~12 pcs 300w panels up to 20~24 hours. The battery and charge controller must be sized appropriately.
SYSTEM COMPONENT

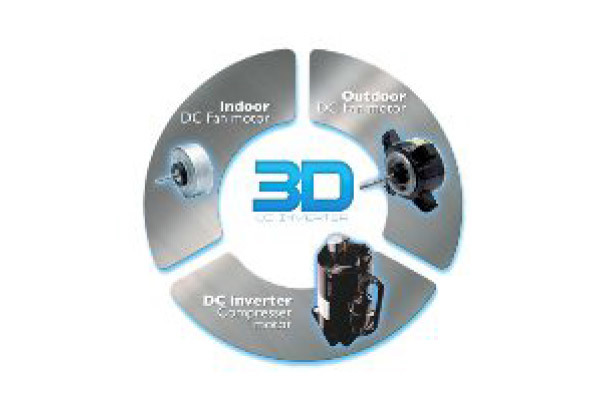

Indoor/Outdoor fan motor & compressor
Indoor & Outdoor unit both adopting DC brushless fan motor and DC permanent-magnet rare earth compressor, greatly reduce the energy loss, ensured low noise.Moreover, the DC brushless fan motor can adjust the frequency and cool/heatpower accordingly.
Solar panel
We suggest to connect 4~10 pcs 250~320w solar panels to drive each solar air co-nditioner. The solar panels are regular ones which available on the market, both mono-crystalline and poly-crystalline ones are acceptable.

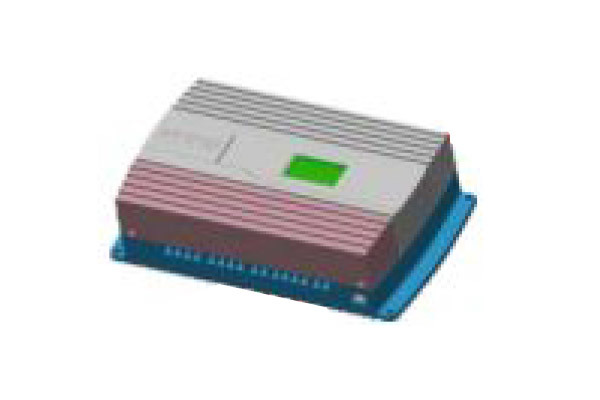

MPPT charge controller
To manage the battery charge and discharge and provide steady power to the solar air conditioner.
Battery
We suggest 4x12v solar battery, depends on system selected and the operation hours you required, you can select the AH of your batteries.
OTHER FEATURES
We are the solar air conditioner solution provider, we not only sell the solar air conditioner but also provide professional solar solutions to our clients.Our target is to let the people all around the world enjoy the environment protection energy saving solar air conditioner.
EXPERIENCE
20 years in HVAC field and 8 years in Solar Air Conditioner
SERVICE
Provide not only the high-quality products but also the full solar solutions.
PROFESSIONAL
Leave the green energy saving solution to professional people please, we can provide you time & money-saving, and safety service.
